256 SIM Box Equipment Provider Call Termination in GSM SIM Auto Switch

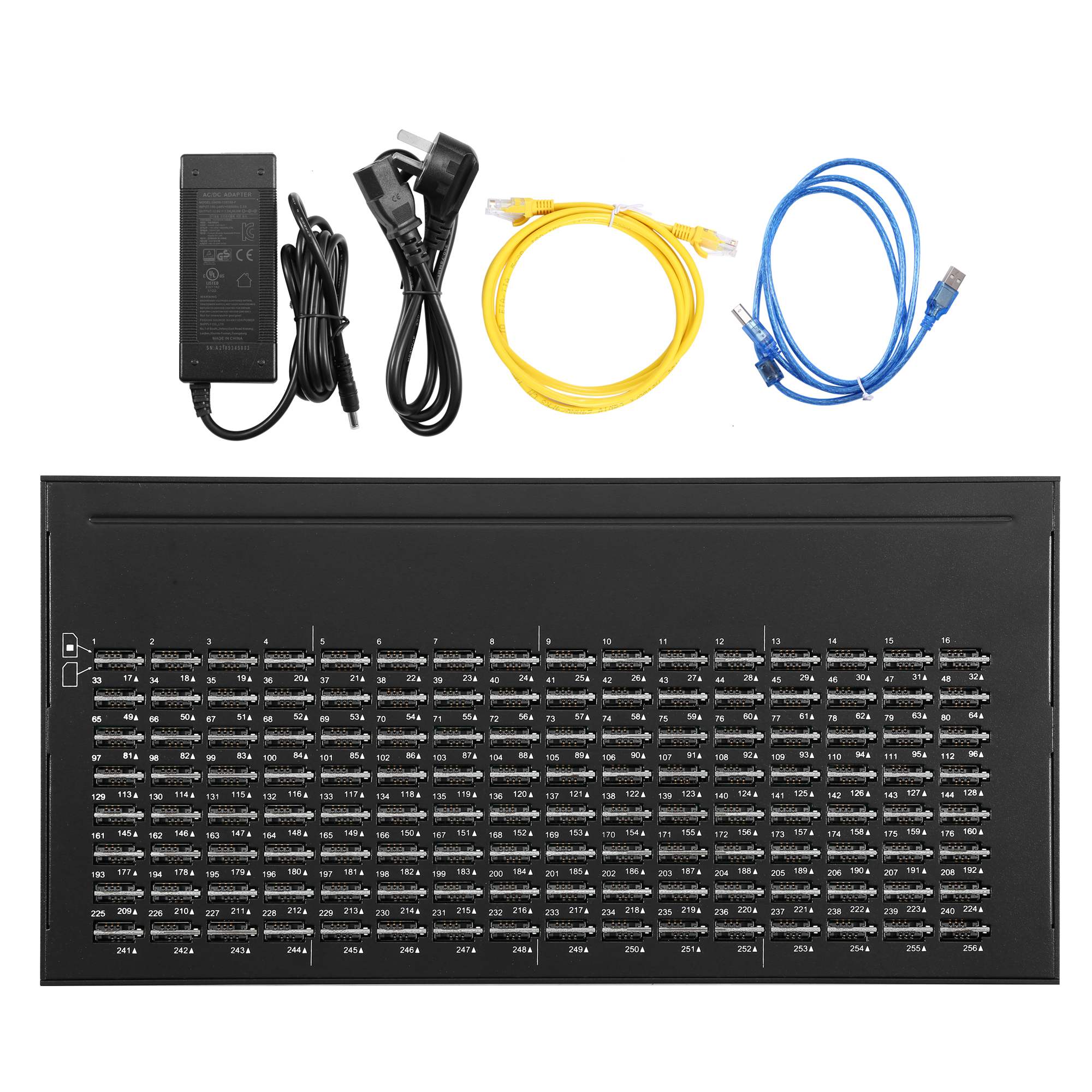

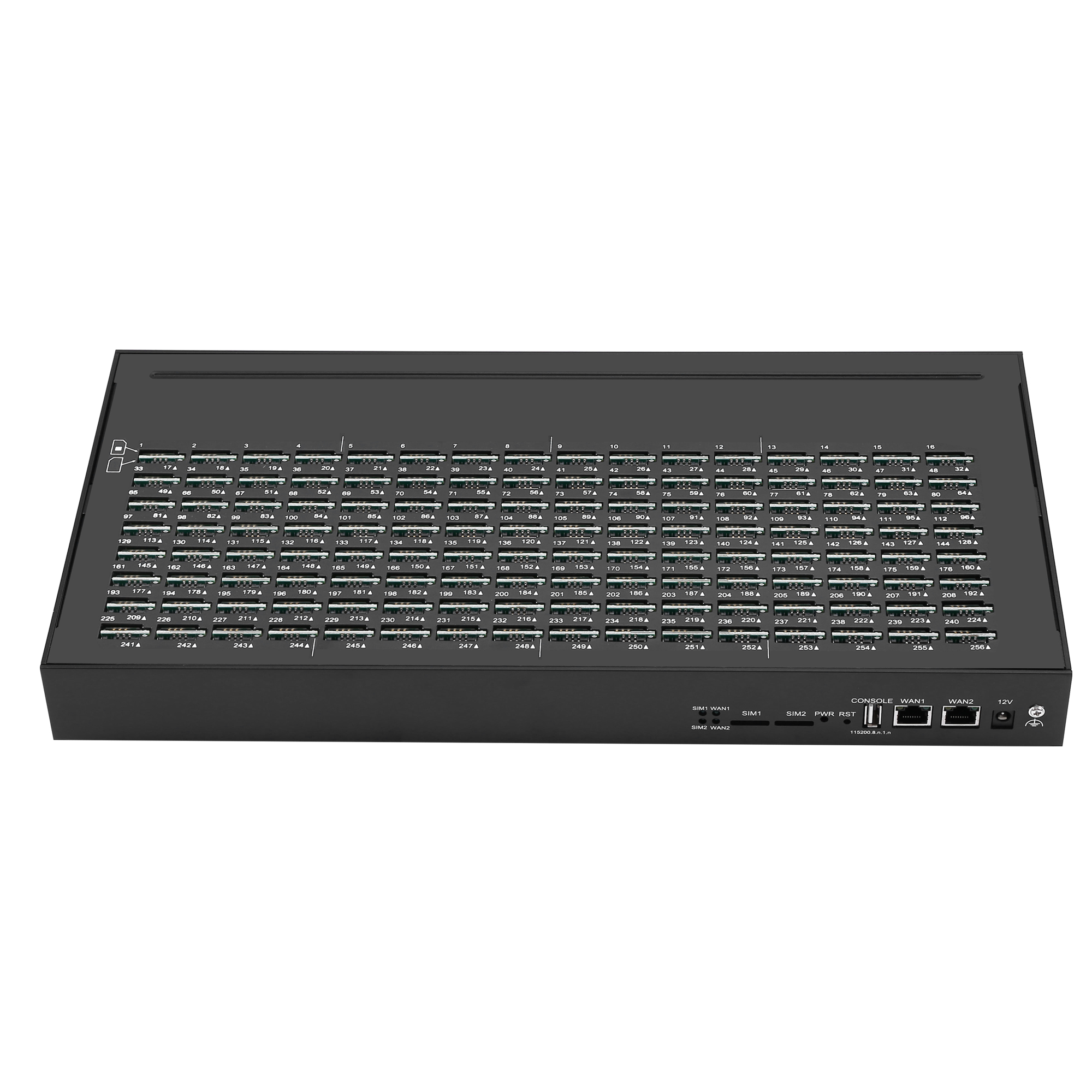

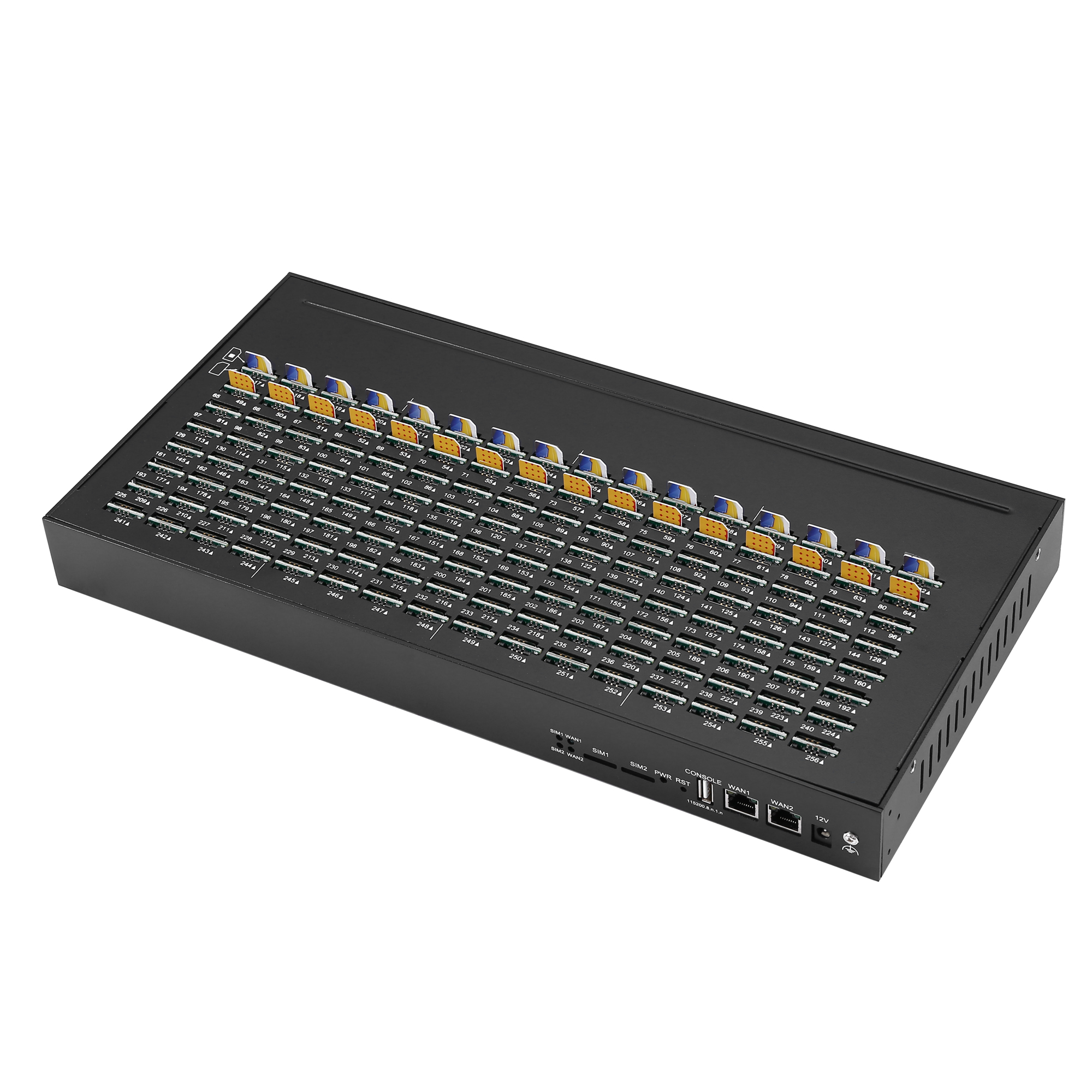

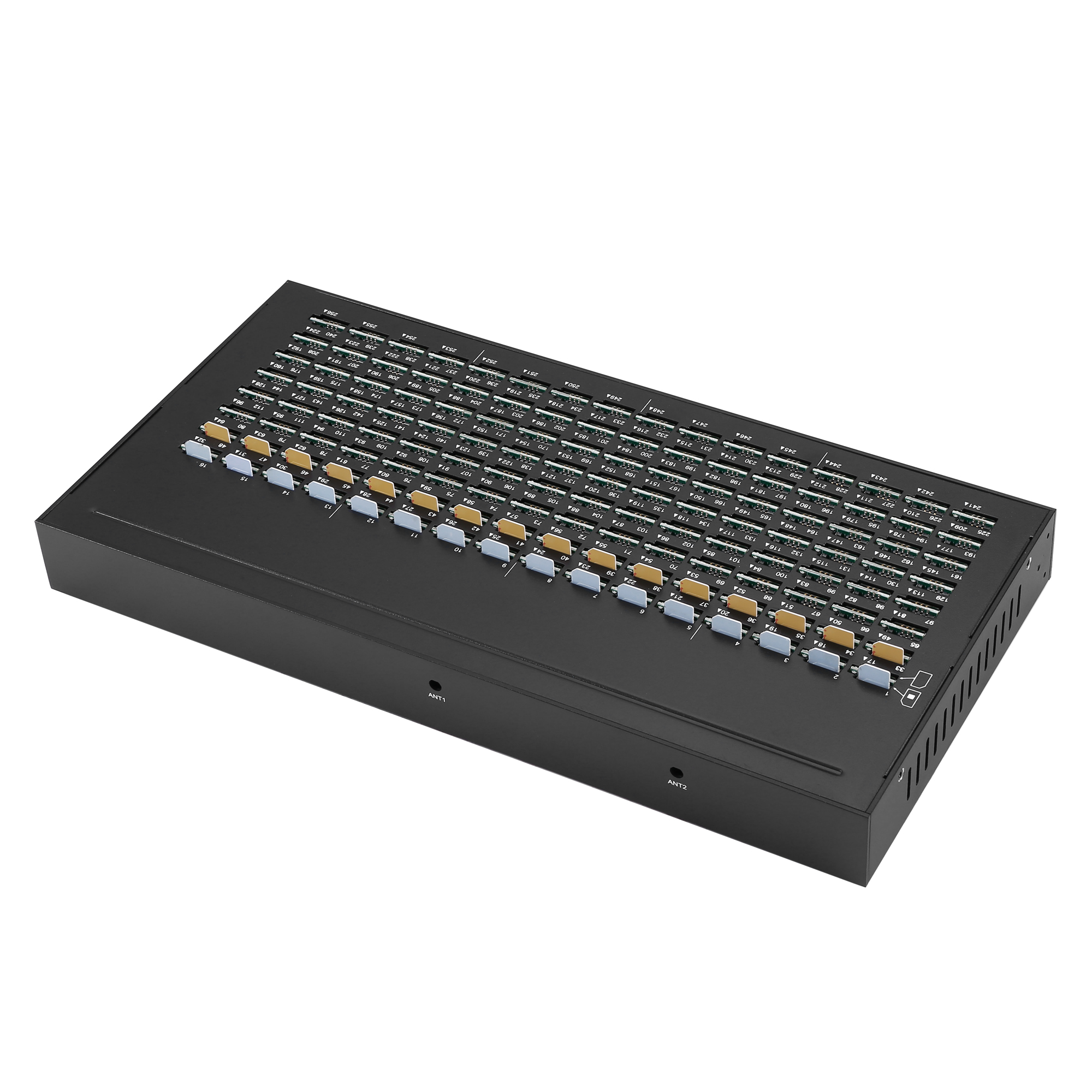

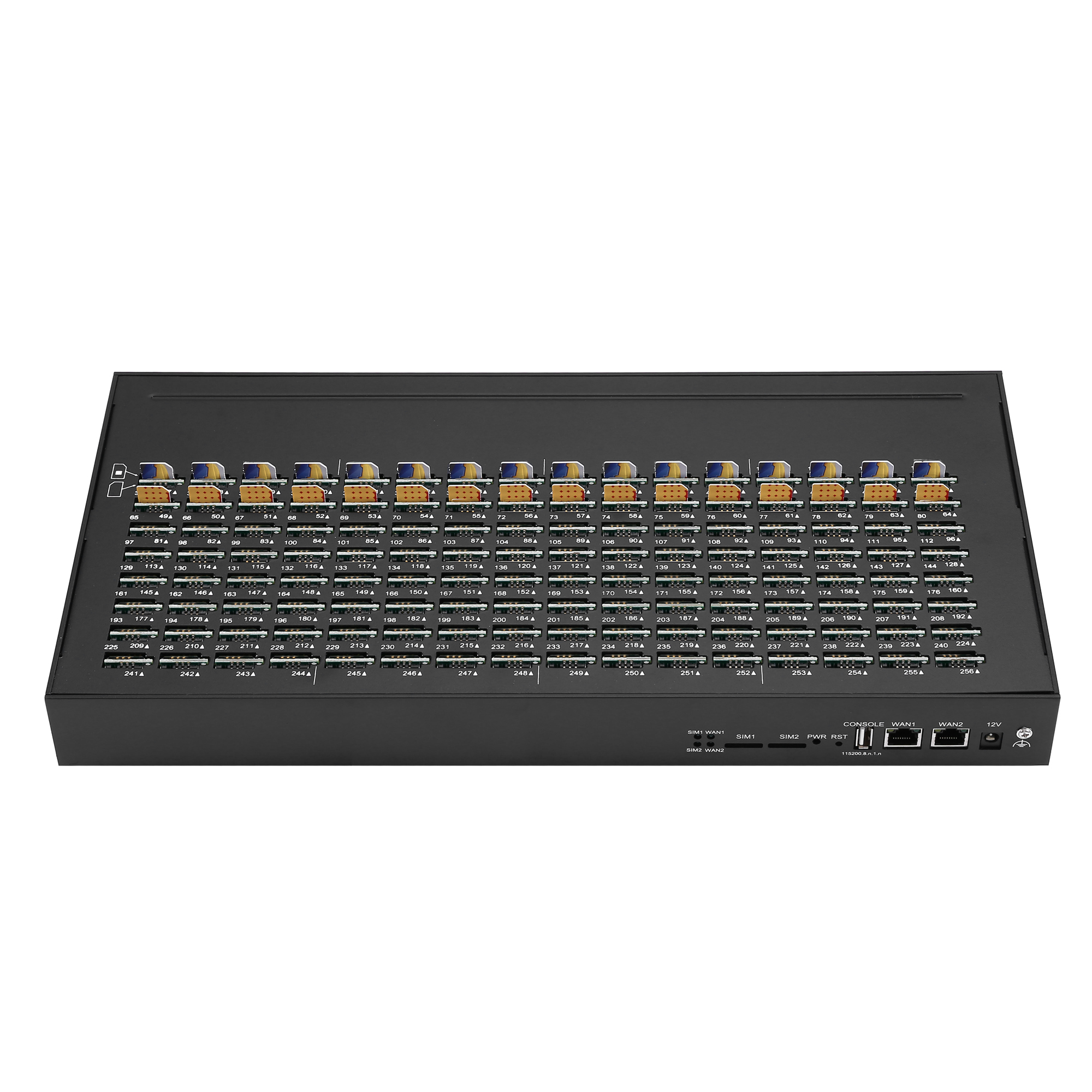

SIMPOOL256 is an equipment which can integrated storage SIM cards. The maximum capacity is 256. It can be perfectly compatible with SK 8 ports , SK16 ports and SK32 ports series gateways. With SIM server, SIM Pool can easily communicate with gateways via IP network. In this way, we can manage the SIM cards remotely.

Special Features:

Specification:

Model	SK SIMPOOL256
Number of Sim	256
Network Protocols	DHCP / PPPoE / VPN(pptp)
	NTP
	Telnet / HTTP / FTP / TFTP
	Telnet / HTTP / FTP / TFTP
Number of Ports	1 WAN 10 / 100Base - T ethernet (RJ - 45 connector)
Number of Ports	1 Console(USB)
LEDs	1 Power and 256 groups of card online and running status indicator
Power Supply	100 - 240V AC, 50 - 60 Hz IN, 12V / 3A OUT
Operating Environment	Operating temperature: 0 - 50ºC
Operating Environment	Operating humidity: 10 – 90% RH
Dimension (L x W x H)	530 * 305 * 90mm
Weight	5.5kg
Warranty	12 Months

256 Channels

Web GUI: Firefox/Chrome /IE/Opera

NAT Traversal and Firewall

Hot Swap of SIM Cards without Powering Off

QoS support

Remote Manage of SIM Cards

Multi-language Support: Chinese and English

Dynamic Allocation of SIM Cards

Protect SIM Cards from Blocking

HTTP/TFTP Upgrade

Control SIM
Connet bulk sms modem
