X7C Enterprise IP Phone
  • X7C Enterprise IP Phone
  • X7C Enterprise IP Phone
X7C Enterprise IP PhoneX7C Enterprise IP Phone

X7C Enterprise IP Phone

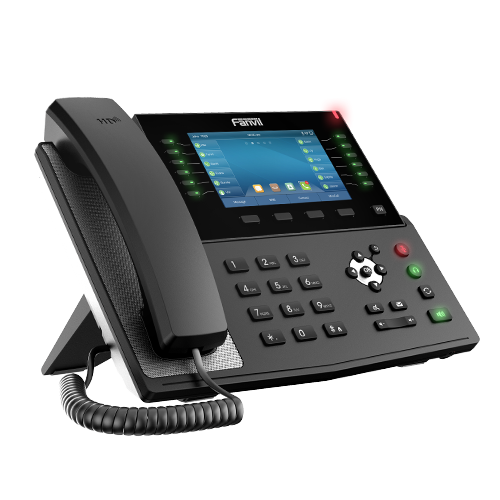

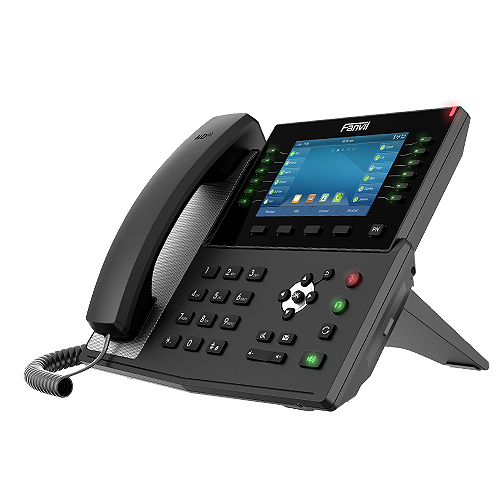

    With a modern, clear design, Fanvil X7C is a high-end enterprise IP phone for business users who need immediate access to all of their important information. In addition to a 5-inch high-resolution color screen, the telephone also features 20 SIP lines, HD audio with Opus support, up to 60 DSS keys (12 physical), Built-in Bluetooth, Wi-Fi connectivity and more!

  • Description
  • Features
  • Application
  • Remarks

Highligh 20 SIP lines HD audio on speakerphone and handset 5 high-resolution color display Built-in Bluetooth for connecting Bluetooth headset Wi-Fi connectivity(Via Wi-Fi dongle) Up to 60 DSS keys entries available(12 physical) Video Codec H.264 support for receiving video calls Dual Gigabit ports, integrated PoE Stand with 2 adjustable angles of 40 and 50 degrees Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.Call Features

Call out / Answer / Reject

Mute / Unmute (Microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Speed Dial

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (Depending on server)



Phone Features

Local Phonebook (2000 entries)

Remote Phonebook (XML/LDAP, 2000 entries)

Call logs (In/out/missed, 1000 entries)

Black/White List Call Filtering

Voice Message Waiting Indication (VMWI)

 Programmable DSS/Soft keys

Network Time Synchronization

Built-in Bluetooth 2.1: Support Bluetooth headset

Support Wi-Fi Dongle



Physical Specifications

Keypad: 43 keys, including 4 Soft-keys 12 DSS Keys with tri-color LED 1 Page-Switch (PS) key 5 Function keys (Hold, MWI,Mute,Headset, Redial) 4 Navigation keys 1 OK key 1 Return key 12 Standard Phone Digits keys 2 Volume Control keys, Up/Down 1 Hands-free key

HD Handset (RJ9) x1

Standard RJ9 Handset Wire x1

1.5M CAT5 Ethernet Cable x1

Back Rack x1

RJ9 Port x2: Handset x1, Headset x1

RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or  Flash Driver

DC Power Input: 5V/2A

Power Consumption (PoE): 2.6~ 9W

Power Consumption (Adapter): 2.4~8W
