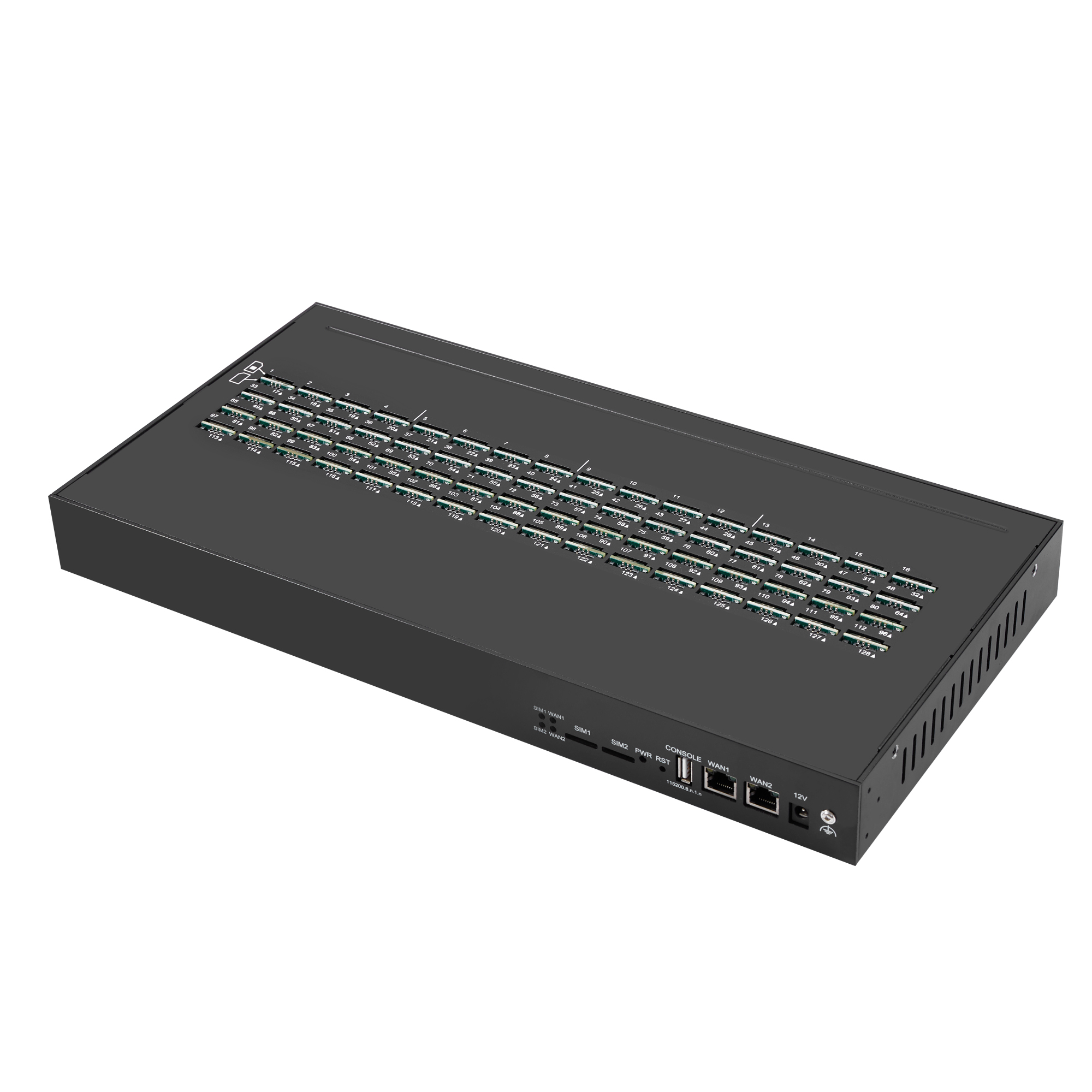

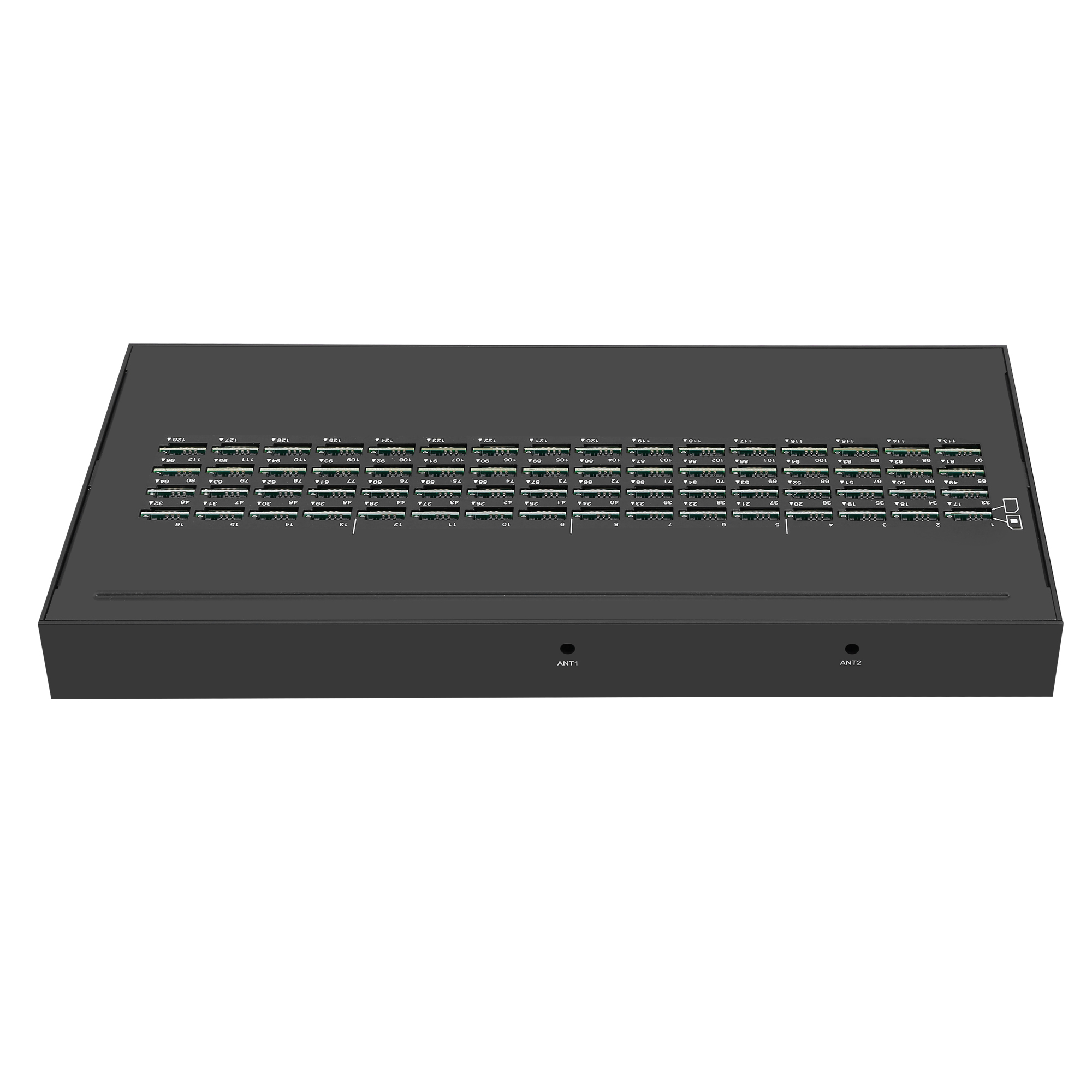

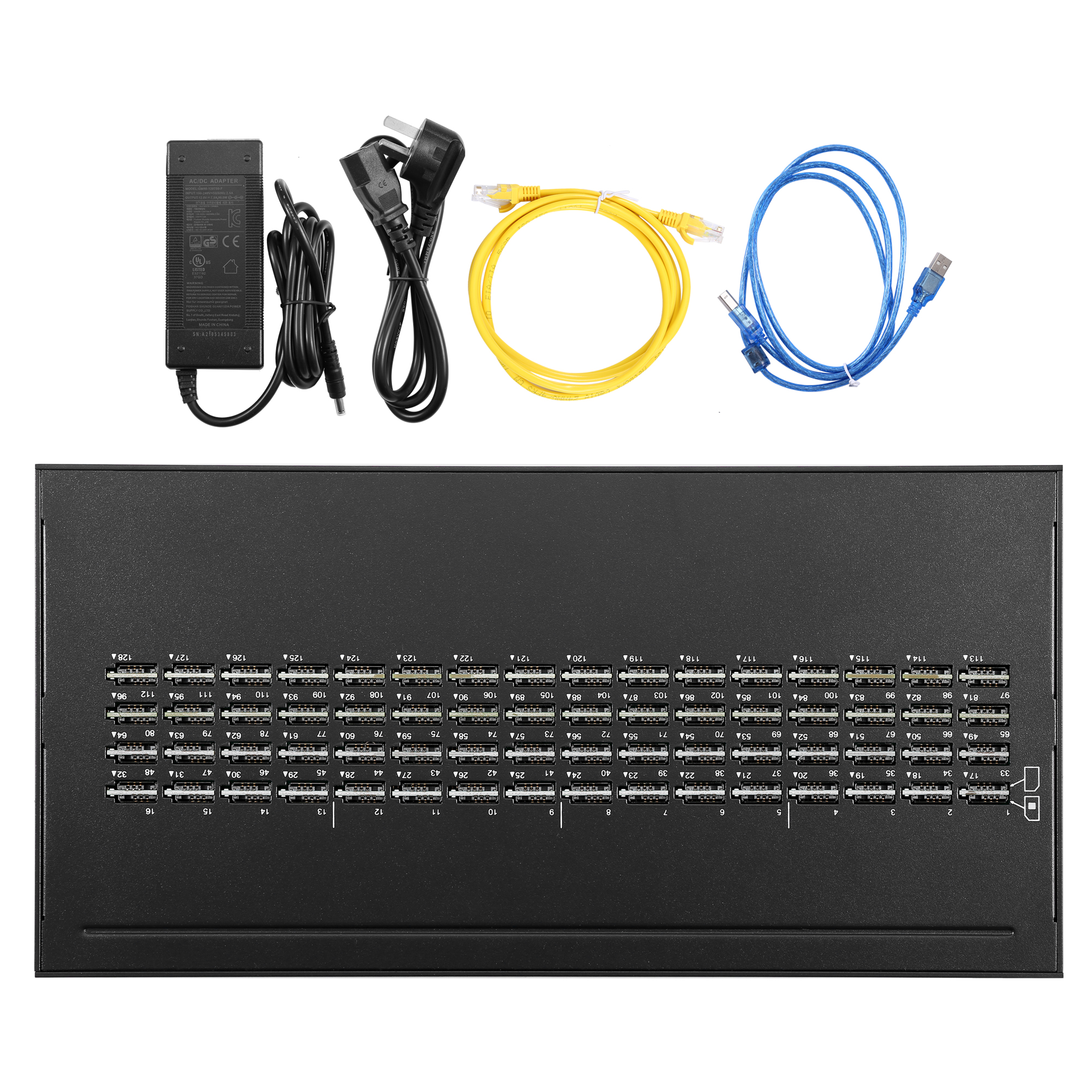

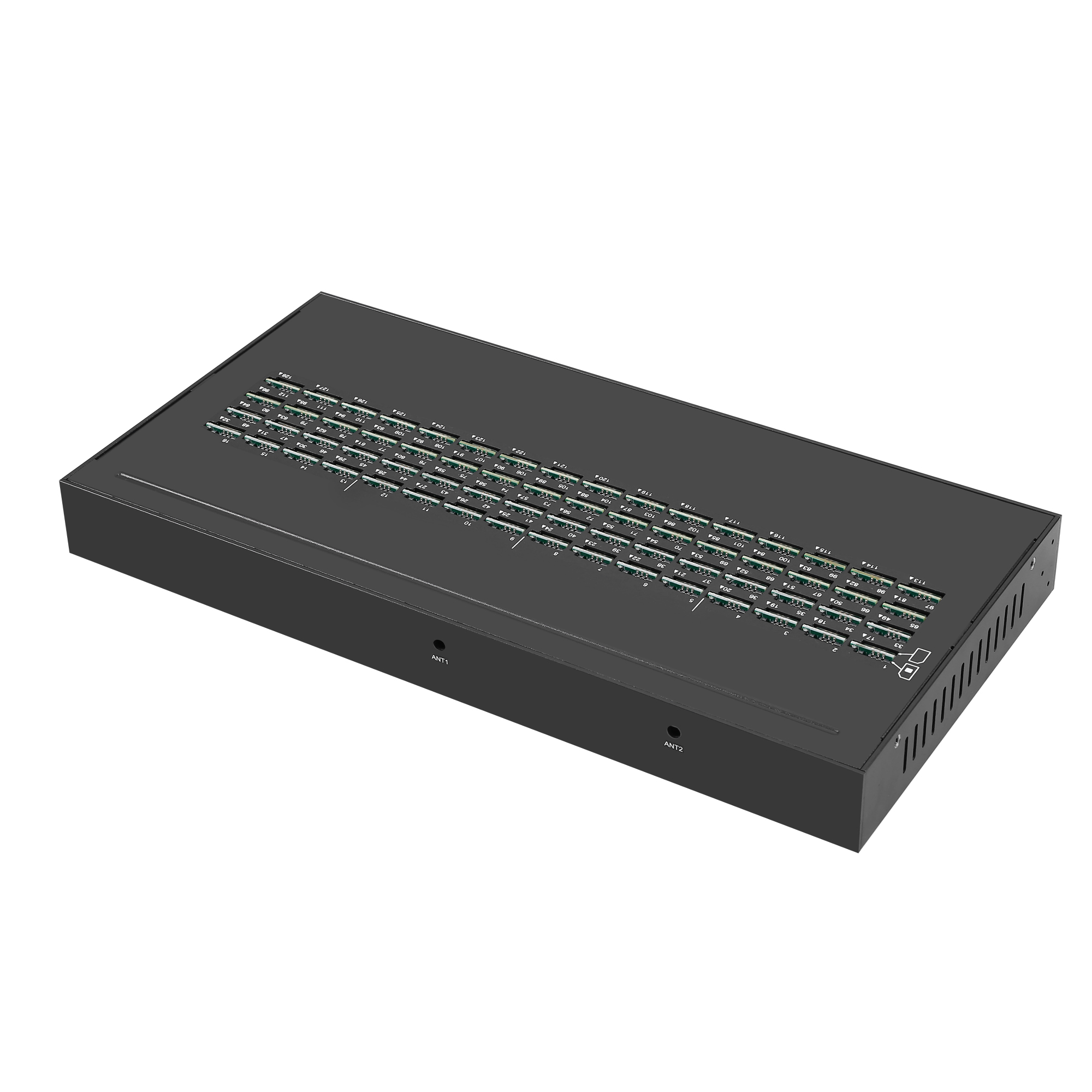

128 SIM Box SIM Remote Control VOIP SIP Gateway
  • 128 SIM Box SIM Remote Control VOIP SIP Gateway
  • 128 SIM Box SIM Remote Control VOIP SIP Gateway
128 SIM Box SIM Remote Control VOIP SIP Gateway128 SIM Box SIM Remote Control VOIP SIP Gateway

128 SIM Box SIM Remote Control VOIP SIP Gateway

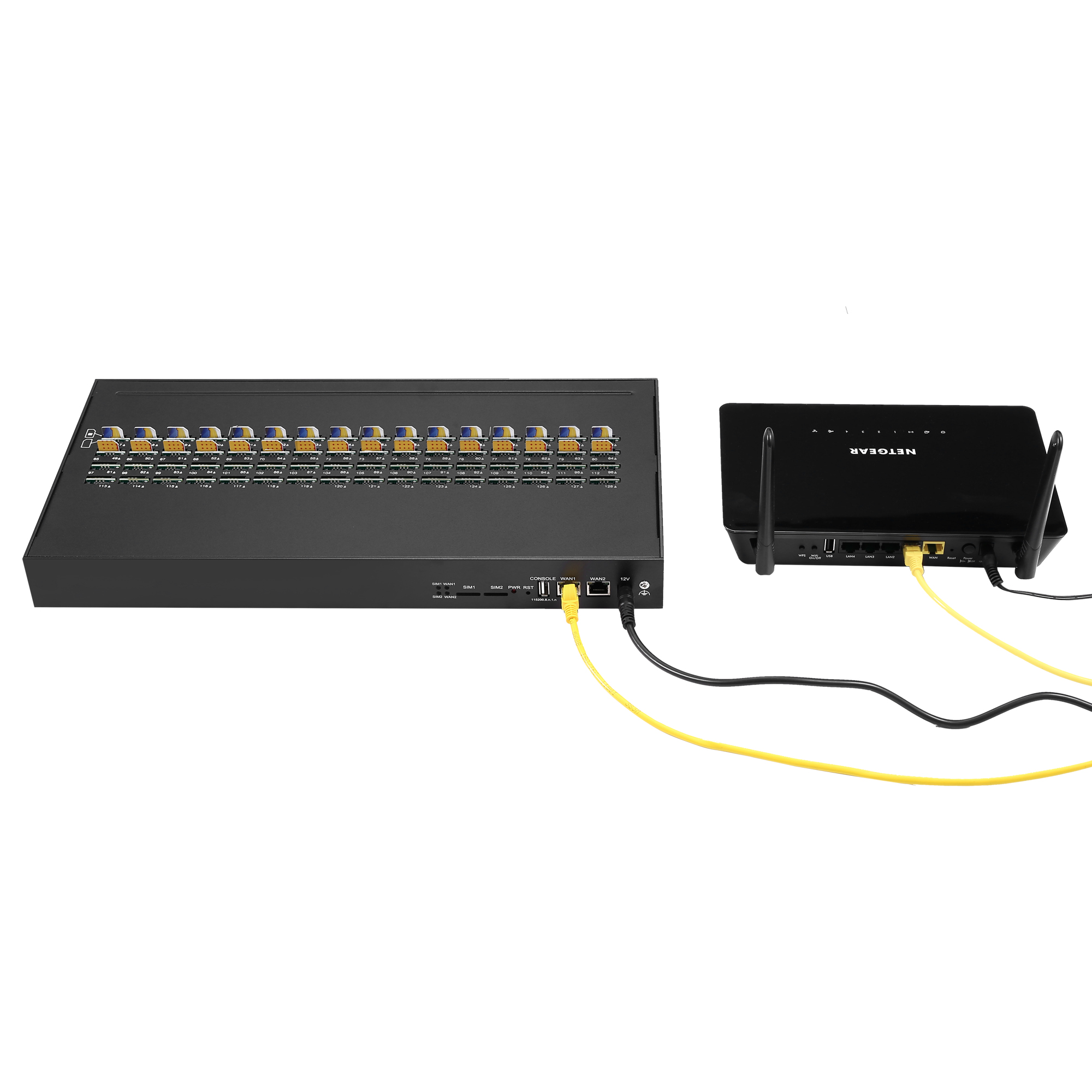

    SIMPOOL128 is an equipment which can integrated storage SIM cards. The maximum capacity is 128. It can be perfectly compatible with SK 8 ports GSM Gateway , SK16 ports GSM Gateway and SK32 ports series GSM Gateways. With SIM server, SIM Pool can easily communicate with gateways via IP network. In this way, we can manage the SIM cards remotely.


  • Description
  • Features
  • Application
  • Remarks

Special Features:
128 Channels
Web GUI: Firefox/Chrome /IE/Opera
NAT Traversal and Firewall
Hot Swap of SIM Cards without Powering Off
QOS support
Remote Manage of SIM Cards
Multi-language Support: Chinese and English
Dynamic Allocation of SIM Cards
Protect SIM Cards from Blocking
HTTP/TFTP Upgrade


Specification:


ModelSK SIMPOOL128
Number of Sim128
Network ProtocolsDHCP / PPPOE / VPN (pptp)
NTP
Telnet / HTTP / FTP / TFTP
Number of Ports1 WAN 10 / 100Base-T Etherne t (RJ - 45 connector)
1 Console (USB)
LEDs1 Power and 128 groups of card online and running status indicator
Power Supply100-240V AC, 50 - 60 Hz IN, 12V/3A OUT
Operating EnvironmentOperating temperature: 0 - 50ºC
Operating humidity: 10 – 90% RH
Dimension
(L x W x H)
530 * 305 * 90mm
Weight4kg
Warranty12 Months



1- The SIM can Make calls from different Base Stations.

2- SIMs auto rotation according to ( Time limits - Day hours - successful calls - Unsuccessful calls - .. etc )

3- Removing Blocked SIMs or SIMs with no credit from routeing.

4- Remote configuration access. ( Web-interface ) .

5- SIMs can make calls and SMS between each other. ( To simulate Human Behavior )

6- Sending USSD code for SIM recharge.

7- working fine with DTMF.

None
